Entities XML

Specifications XML Definition Entities


  • root: <Items>

  • under <Items> can contain 1 or more <Item>'s

  • an <Item>;

    • Required:

      • <O>: description. This is seen by the user.

      • <Id>: internal id. This is passed along to the sproc.

    • Optional:

      • <T>: type. Possible values:

        • Text (default)

        • Integer

        • Date

        • List: may only be at the one-lowest level. (this is the dropdown on the right)

        • Decimal: for decimal numbers (operational from TC 7.0)

  • <Preview>: true/false*. Default is false.

  • <Items>: group/tree items below.

  • <Operators>: comma-separated operator list.

    • Erft over. (can only be done on <Item>)

    • When not included, take default values depending on type (<T>)


* values are case sensitive


Operators

  • xml: the representation in the entities XML

  • Text: shown to the user

  • Sproc input: representation sent to various stored procedures, such as 'calc_selection'.

  • Standard by... columns: If operators are not explicitly specified, then these operators are used


XML

Text

Sproc input

Standard at TEXT

Standard at Integer

Standard at List

=

=

=

x

x

x

!=

<>

<>

x

x

x

gt

>

>

x

ge

>=

>=

x

lt

<

<

x

le

<=

<=

x

like

like

CONTAINS

x

begin

begin

STARTS

x

end

end

ENDS

x

In

In

IN

x

isempty

Is empty

ISEMPTY

x

x

isnotempty

Is not empty

ISNOTEMPTY

x

x


Special characters

Special characters such as bird's beaks (<,>) and ampersands (&) should be replaced with xml entities.

Please note that the semicolon at the end is mandatory.

Most commonly used XML entities:

Sign

in XML

&

&amp;

<

&lt;

≤

&#8804;

>

&gt;

≥

&#8805;

ë

&#235;

Ë

&#203;

Please note that unlike HTML, only the following named entities may be used in XML: &lt; &gt; &apos; &quot; &amp;. In other cases, choose the numeric representation (such as &#8804;)

Example


1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

<Items>

<Item>

<Operators>=</Operators> <!-- default operators is overwritten.-->

<O>Event (id)</O>

<Id>event_description</Id>

<T>INTEGER</T>

</Item>

<Item>

<O>State</O>

<Id>registrant_state</Id>

<T>LIST</T>

<Items>

<Item>

<O>Registered</O>

<!-- Registered is used as <Id> -->

</Item>

<Item>

<O>Stopped</O>

</Item>

<Item>

<O>Visited</O>

</Item>

</Items>

</Item>

<Item>

<O>Type of registration</O>

<Id>registration_type</Id>

<!-- <T> is Text here -->

</Item>

<Item>

<O>Company name</O>

<Id>company</Id>

</Item>

</Items>


XML Tree View

After saving the entity, it is immediately available.

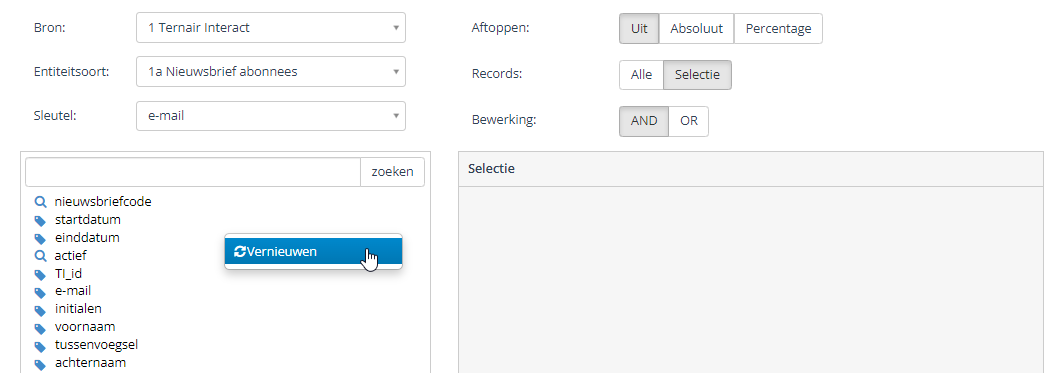

  • Open a SELECT block

  • Select the entity

  • Right-click on the left pane

  • Choose refresh

  • The new XML definition appears
